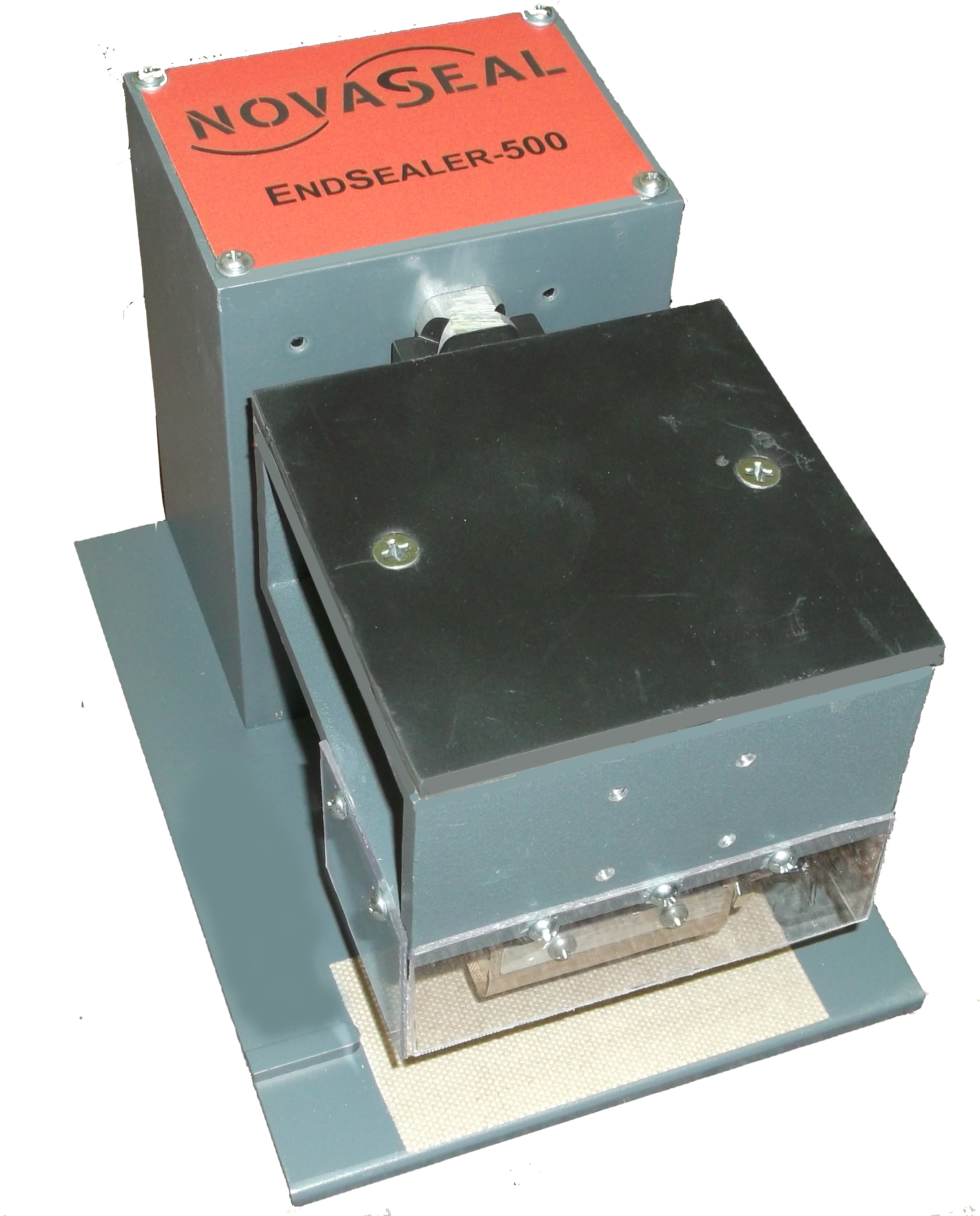

EndSealer 500

USER’S MANUAL

PLEASE READ ENTIRE  MANUAL BEFORE OPERATING THIS EQUIPMENT

Introduced February 2012

All Products Designed &  Manufactured by Nova Products Mfg., Inc.
in the United States. Novaseal^® is a licensed trademark.
All Rights Reserved.

IMPORTANT SAFEGUARDS

• Read all  instructions prior to operating.
• Warning:  Electric  shock could occur if used incorrectly or on wet surfaces.
• Do not touch hot  surfaces.
• Keep hands, feet,  loose clothing away from hot sealing die.
• Do not immerse any  part of this product in water or other liquid.
• Do not use this  product on wet or damp materials.
• Never use EndSealer in presence of flammable or combustible liquid or fumes.
• Do not cool the  sealing die with liquid.
• Always operate  product in a well-ventilated area or operate outdoors.
• Unplug product when not in use.  Allow to cool completely before storing.  Store in clean,  dry area.
• Do not operate this product if cord or plug has been damaged in any way.  If cord or plug  is damaged, return this product to manufacturer for repair or  adjustment.
• Never leave  plugged-in product unintended.
• Use EndSealer only  for its intended use as described in this User’s Manual.
• Appropriate,  non-flammable work gloves are recommended to be worn when operating  EndSealer.
• Manufacturer  recommends wearing respirator when working with materials that generate  toxic or hazardous fumes.
• Do not drop  product.
• If power source or  generator fails while the EndSealer is in use, simply turn off  EndSealer, recharge power source or generator, and re-start EndSealer  per instructions.
• Product must only  be used with 110/120 VAC 50/60 Hz power source.
• WARNING:  Sealing  Die cooling time varies with ambient air temperature, operating  temperature, existence of wind, etc. and therefore may take longer than  expected to properly cool before touching the Sealing Die.
• All repairs must be made by qualified personnel at Novaseal.  If repairs are necessary,  package EndSealer securely and ship via prepaid UPS or FedEx service to  attention of Customer Service, Nova Products Mfg., Inc., 6574 N. State Road 7, #381, Coconut Creek, FL  33073 USA.

SAVE THESE INSTRUCTIONS

NAMING CONVENTION

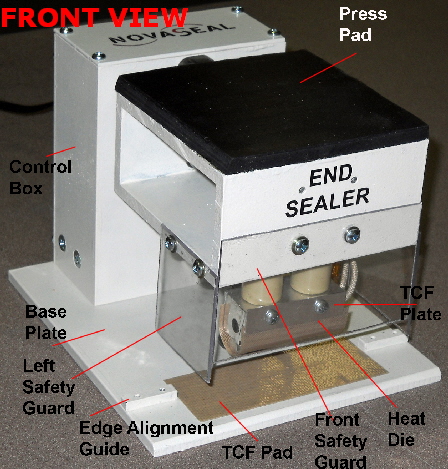

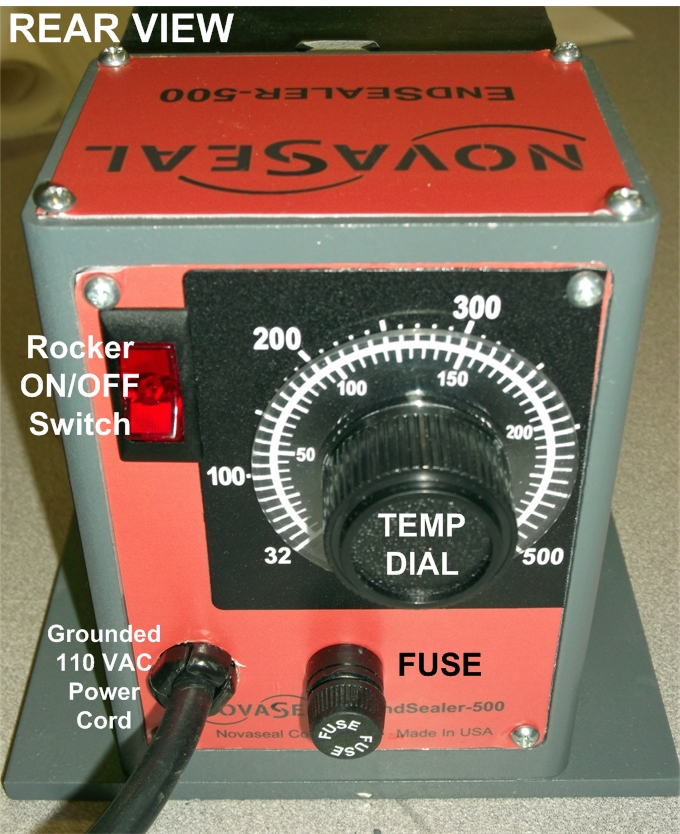

The following  images define our standard naming convention as it relates to the EndSealer.  Reference to these names will be referred to throughout this document.

USE PREPARATION

ENDSEALER MUST ONLY BE POWERED BY A 110/120 VAC 50/60 HZ POWER SOURCE.  TO AVOID ELECTRICAL CIRCUIT  OVERLOAD OR POSSIBLE SHOCK, DO NOT USE WITH OTHER THAN 110/120 VAC 50/60 HZ POWER SOURCE.

• Before plugging in the EndSealer, make sure that the moveable  press section can move freely up and down with slight pressure.  Make  sure the springs are maintaining an UP position.
• Additionally, make sure that the TCF Pad and TCF Material  encompassing the Heat Die are in good condition.
• And make sure all  screws are tight.
