Electrical & Pneumatic Connections

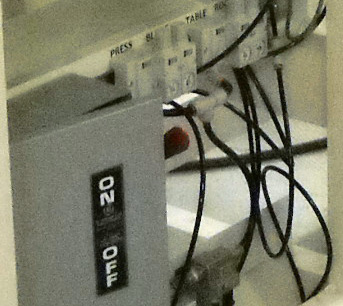

Shown in this photo is the Safety Switch, 4 Regulators and Guages; and Filter.  Safety Switch is where you connect power to the machine.  Regulators are used to adjust air pressure for each pneumatically activated devices.  Filter is the connection point to bring in compressed air to the machine.
