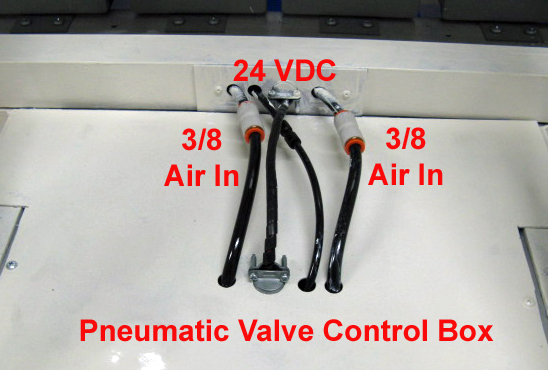

Valve Control Box is located Top Center.  Includes Valves for each Plunger and each Press Cylinder

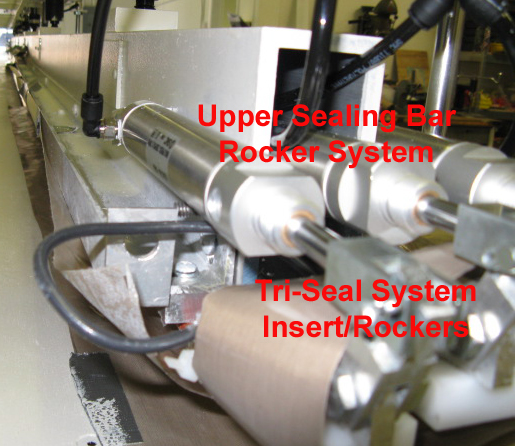

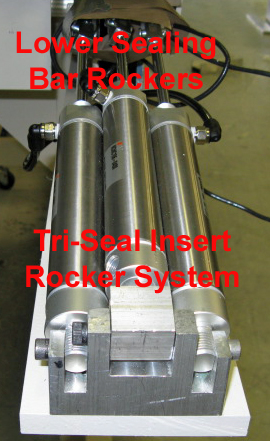

Tri-Seal System Inserts and Rockers are used to create the Tri-Seal.  There is an upper and lower Sealing Bar Rocker System as shown here.

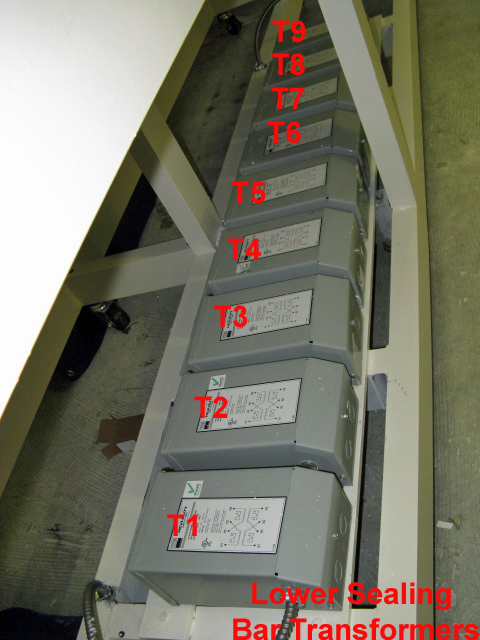

Lower Sealing Bar Transformers.

Numbered T1 through T9.  Power to Lower Sealing Bar exits from Transformer 9 (T9).

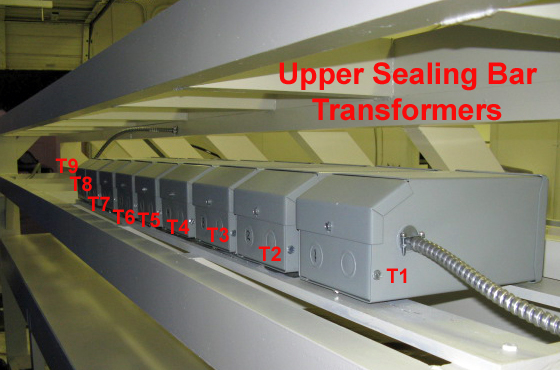

Upper Sealing Bar Transformers.

Numbered T1 through T9.  Power to Upper Sealing Bar exits from Transformer 9 (T9).

Note that location of T9 for Upper and Lower Sealing Bars is different ... one closest to control panel, one further.
